Description
Specifications
Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.8 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 6.5A
Cell efficiency 21%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 2200g
Size 1170*540*3 mm
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Package list 1 360w solar panel
1. 3*120w soalr panel
Package List 2 360w solar panel kit
1. 3pcs 120w solar panel
2. 30A 12v/24v charge controller
3. 1 set Extension cable with PV connector

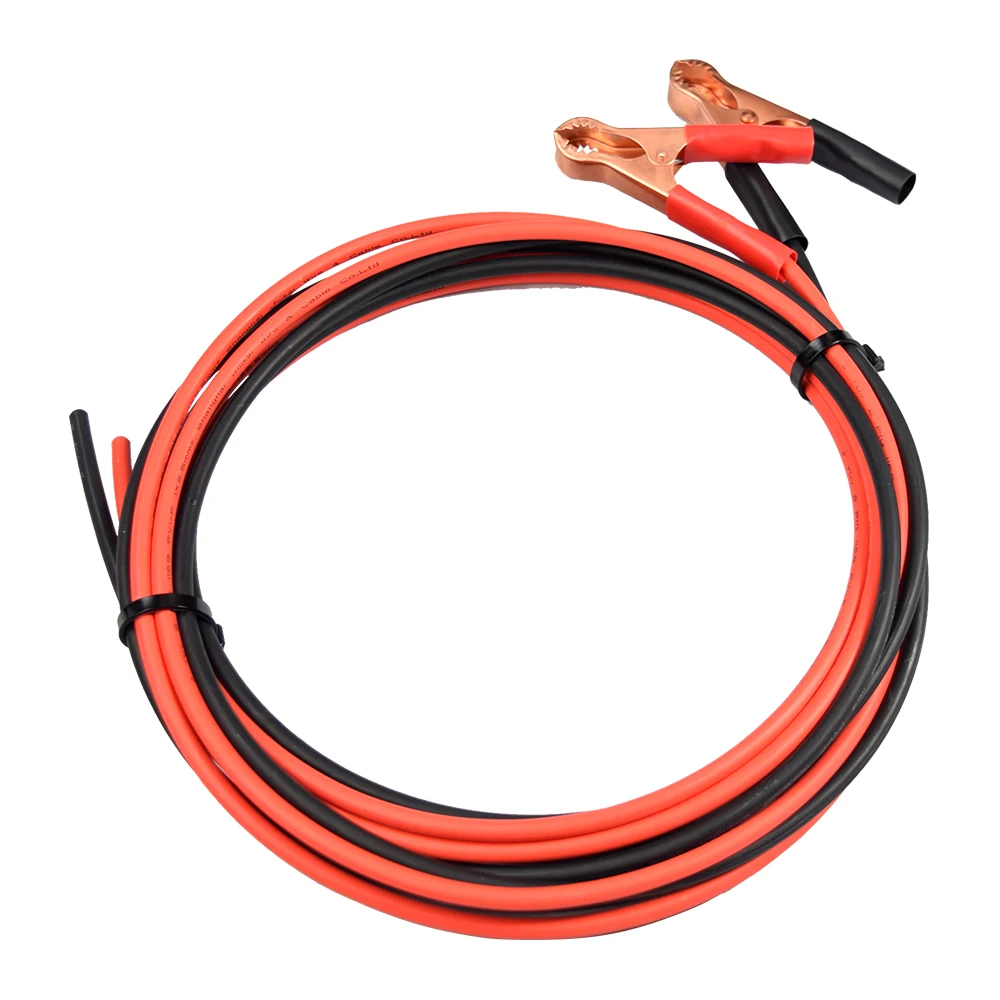

4. 1 set cable with alligator clip （connect to battery）
5. 1 set 3 in 1 adapter
Please note:
The following options include two, 12V 110V and 12V 220V solar panel system.
Please pay attention when placing an order.
Thank you for your cooperation!
Package List 3 12v 110v or 12v 220v solar system
1. 3pcs 120w solar panel
2. 30A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1*1000w 12v 110v OR 12v 220v Inverter
6. 1 set 3 in 1 adapter
About the Controller
Batt voltage: 12V / 24V auto
Charge Current: 30A
Discharge current: 30A
USB output: 5V / 2A
Self-consumption: <10mA
Operating temperature: -35 ~ + 60 ℃
Suitable for: lead acid and lithium ion batteries
Built-in short circuit protection, open circuit protection, reverse
Package list 4 120w solar panel
1. 1*120w soalr panel
Package list 5 240w solar panel
1. 2*120w soalr panel
· [Excellent performance] High efficiency monocrystalline solar cells offer good performance even under poor light condition,Including bypass diode, circuit with input overcurrent protection, reverse protection design
· [Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
· [Practicality] Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.
· [Lightweight] Ultralight and Ultra-thin ，Better applied to the carrier with weaker bearing, attached to the surface, no space，easy to install,
· [Nice Details] The water resistant semi-flexible solar panel is far more durable than traditional glass and aluminum models， The junction box is sealed and waterproof.
Notes for use
a. This product must not come into contact with highly corrosive substances.
b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.
g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.
i. The inverter can only be connected to the battery, not directly to the controller.
