Solar Charge Controller Regulator 10A 12V 120W 24V 240W Solar Panel Controllers Pwm Solar Regulator … #5749-Emily

$ 6.79

5A 12V solar waterproof charge controller IP67 for small solar home use mini size solar cells panel battery charge controllerUS $ 11.99/piece30A Solar charge controller LCD display 12V 360W Solar Panel 24V 720w solar panels light timer …

Order now...

SKU: 2038323842. Category: . Tag: .

Product Description

Click here for Best Deals

solar charge controller regulator 10a 12v 120w 24v 240w solar panel controllers pwm solar regulator cmp12

10A CMP12 12V 24V intelligence Solar cells Panel Battery Charge Controller Regulators


Package including:
1.  1PCS  10A solar controller
2   1 PCS   User’  manual
CMP12 CMP12/24 10A 12V 24V Solar Charge Controller
Only For off-Grid PV Solar System.
For 12V Pv System: 150W Solar Panel,12V Lead-acid Battery,21V for Max input Voltage
For 24V Pv System: 300W Solar Panel,24V Lead-acid Battery,42V for Max input Voltage
Overcharging protection
Can be used for all panels
Overdischarging protection
Short and Open Circuit protection
Full specification available if required
Fail Safe and cannot be damaged by accidental wiring mistakes
Advanced design with simple plug and play technology. No need for complicated adjustments

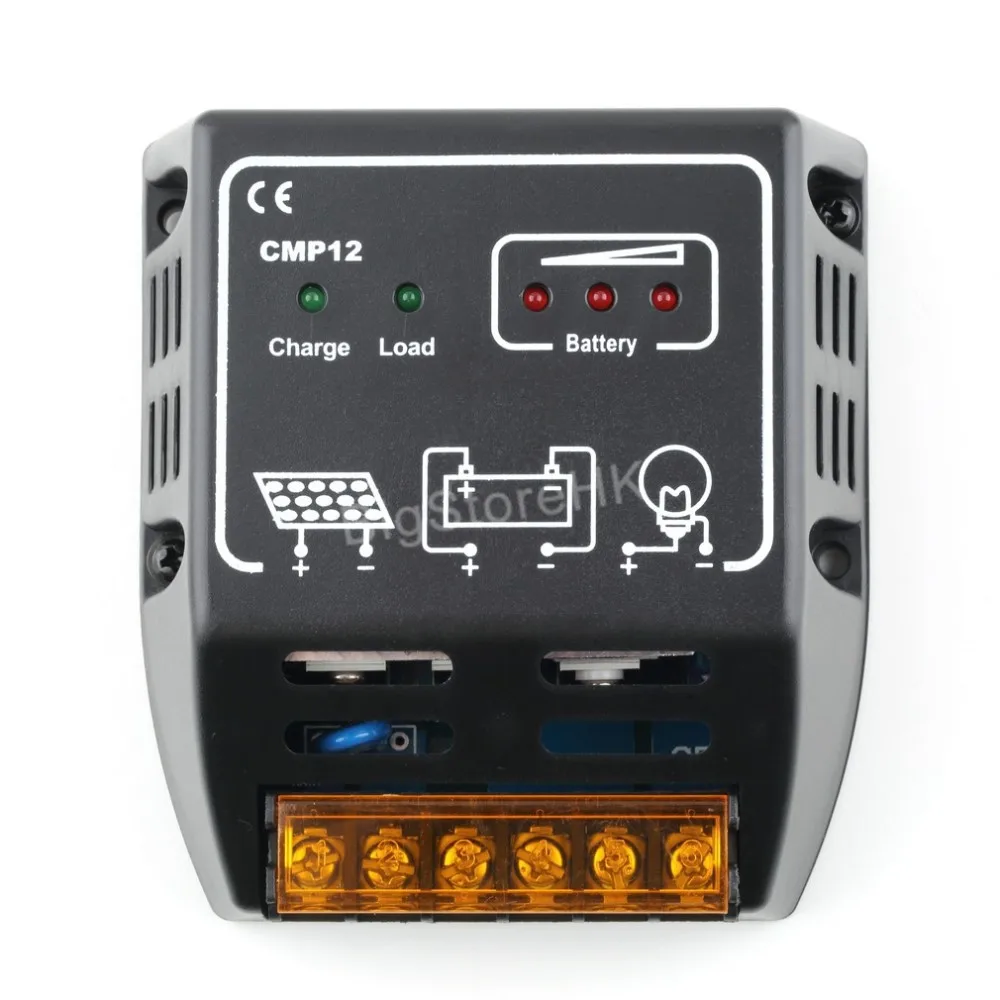

Indicator LED
1.The Battery is being charged strongly when the Charge LED is lighting;Filckering means the battery is in floating charge Mode,if it`s off means charging stopped.
2.When the LOAD LED is lighting,it means there is output and load can work;if it`s off,there isn`t output and the load can`t work.
A solar charge controller is the controlling center of the PV battery in off-grid power system which makes use of solar cells array to protect your batteries from being over-charge and over-discharge, so the life span of it can be extended.
Functio  According to the voltage of battery, Solar charge controller will adjust the charging current and decide if to supply power to the loads.
1. Generally keep the battery on full voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from supplying power to solar panels during nights.
Output voltage:12V 24V auto switch
Max load current: ≤12A
Full charge cut:13.7V
Low voltage cut:10.5V
Temp ompensation:-3mv °C/cell
Zero Load Loses:≤20mA
Voltage Drop:<160mv


See all Bestsellers

Additional Information




Charger Controller

Maximum Current

10 Amps

Brand Name


Model Number


Rated Voltage


Work For

Off grid Solar Energy System

Max Input Voltage

12V PV System:21V; 24V PV System:41V

Battery Type

Lead Acid Rechargeable Battery

Model Number

CMP 12

Rated Voltage

12V 24V auto work

Max Solar Panel Input Power

150W(12V) 300W(24V) Solar Panels

Charge Mode

Solar Controllers PWM

Float Charging Voltage


Low Voltgae Disconnect Voltage


Country Of Manufacture
