new 1 pair 1m solar panel pv connecting 6mm2 cable with mc4 connectors h1e1

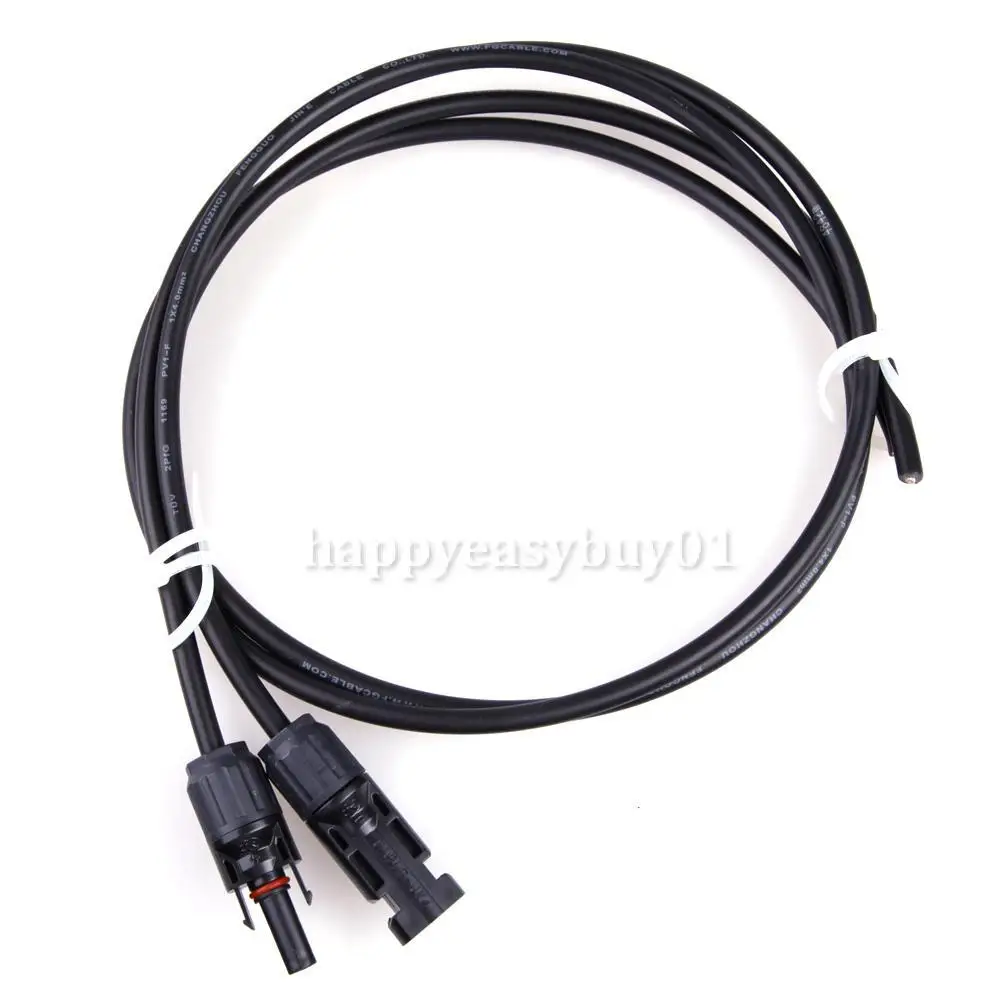

New 1 Pair 1M Solar Panel PV Connecting 6MM2 Cable with MC4 Connectors H1E1

100% brand new and high quality
For connecting solar panels
1 meter long cable
Compatible with MC4 connector
Sturdy and durable

MC4 connector:
Max working current: 25A
Max working voltage: DC1000V
Contacting resistance: ≤0.5mΩ
Insulation resistance: > 500MΩ
Single core cable sectional area: 6mm2
Cable outer diameter: Φ5mm~Φ 7mm
Ambient temperature: -40 ℃~ + 105 ℃
Protection grade:IP67
Safety class: II
Pollution class: 2 class
Working temperature: -40~+85℃
Insert force: ≤50N
Withdrawal force: ≥50
Insulation material: PC, black
Contacting material: Copper, nickel plating
Flame class:  UL94-VO
Terminal connecting method: pressure welding

Model: PV1-F
Nominal cross section: 6mm2
Rated temperature:  -40~﹢90℃
Rated voltage: DC:1.8kv
Rated current: 31A
Weather fastness: UV
Flame resistance: single vertical burning test (IEC60332-1)
Working temperature: -40~﹢90℃
Working voltage AC/DC(KV):  0.6~1.0/1.8
Core number: NO. 1

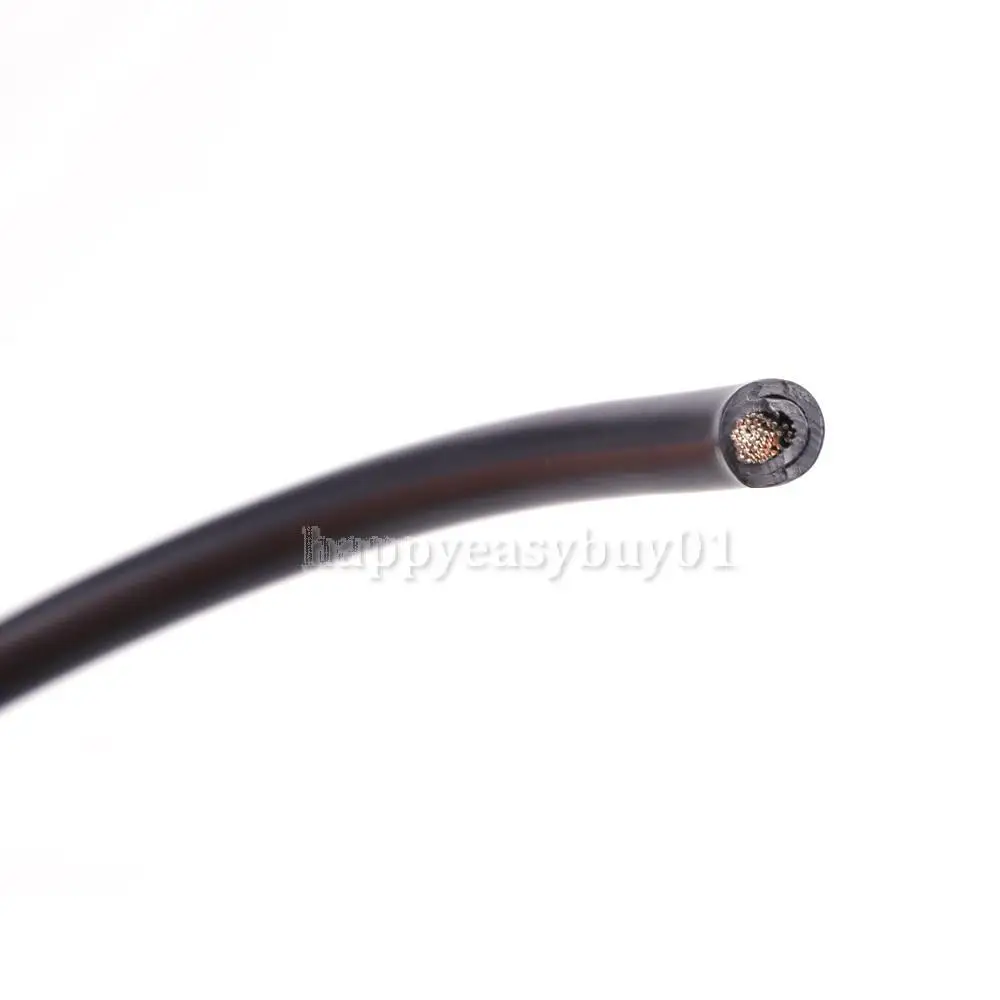

Conductor: copper wire structure NO./mm 56/0.30
Insulation minimum thickness: 0.5mm
Sheath minimum thickness: 0.5mm
Finished cable outer diameter: 6.2±0.1mm
Conductor resistance(20℃): ≤5.09 Ω/km
Test voltage(kV/min):  6.5/5 No breakdown

2x MC4 cable connectors
