Lcd Display 30A Pwm Solar Panel Regulator Charge Controller 12V/24V 360W/720W With Dual Usb For Camper / Caravan / … #2202-Addison

$ 27.99

Waterproof Solar Floating LED Lotus Light, Flower Night Lamp Yard Pond Garden Pool Lights for Pool/ Garden/ PartyUS $ 15.79/pieceDigital PWM 30A Solar Charge Controller Regulator 12V 24V Autoswitch Solar Panel PV panel Battery …

Order now...

Product Description

Click here for Best Deals

lcd display 30a pwm solar panel regulator charge controller 12v/24v 360w/720w with dual usb for camper / caravan / boat

BA1


Details:
  • Maximum voltage of PV: 30A; Maximum discharge current: 30A; Maximum output voltage: 12V/24V; Maximum output power: 360W/720W.

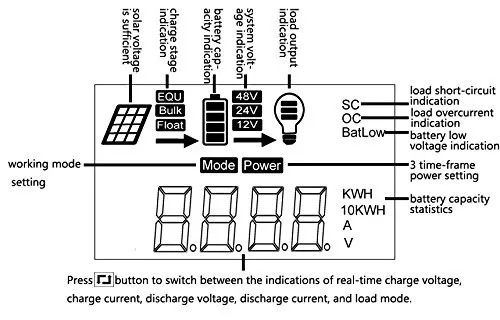

  • 30 x 50mm LCD display screen, can show the status of charging and discharging in time. With indicator light of charging and discharge
  • Button: From left to right is the button of Function Setting button, from up to down is direction key
  • Temperature compensation function, the controller can automatically adjust the charge parameters of battery by environment temperature to prolong the service life of battery
  • Sophisticated electric protection production, including over-current protection, load short-circuit protection and low-voltage protection

51guaK8PExL

Description:
This is a new intelligent solar controller, which is equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. And, it has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and is adaptable to different industries. The product can be applied to the following occasion:
1). Outdoor environment monitoring system
2). Automatic control system for agriculture and garden
3). Solar power system
4). Communication station, WIFI hotspot
5). Street lighting system
6). other systems which are supplied by solar energy and have requirements power EMI indicator
Note: You had better connect to the battery first when you operate the system

Specification:
Color: Black
Size: 14.5 x 8.0 x 3.0 cm
Package Weight: 9.7 oz/276g
System voltage of PV: 40V
Compatible battery: lead-acid cell
Charge way: 3-state- PWM Charge

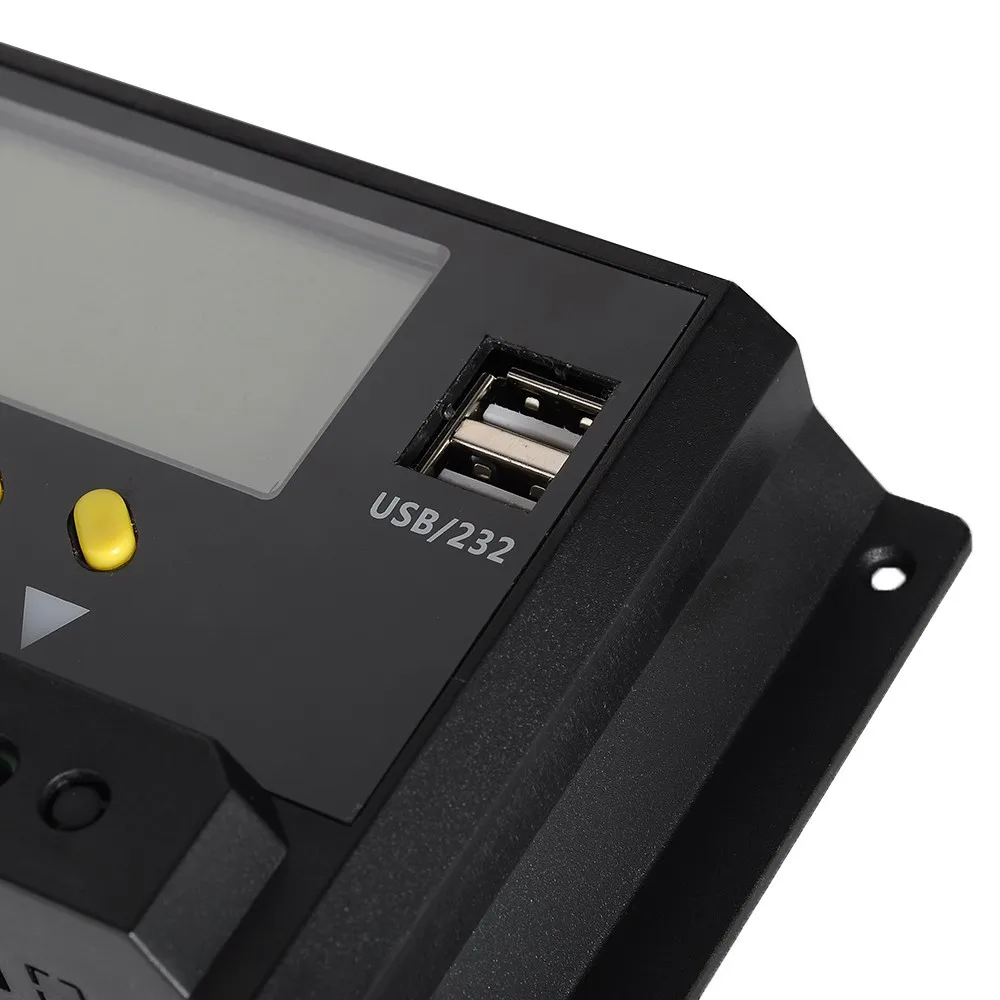

USB Charge port: 5V 1A

Note:
During the installation and usage, please make sure to obey by the following safety regulations and notices to avoid the damage to controller
1). There is no maintainable part in the controller. User cannot disassemble or repair the controller without permission
2). before installing and adjusting the connection of controller, please make sure to disconnect the connection of photovoltaic panel and the fuse or breaker around battery terminal
3). after installation, ensure all the wire connections are reliable to avoid heat accumulation for virtual

What is included:
1 X Solar Controller
1 X User Manual


RH77- (1)
RH77-5
RH77-6
RH77-7







See all Bestsellers

Additional Information

Is_customized

Yes

Application

Solar System Controller

Maximum Current

30A

Brand Name

30A PWM Solar Panel Regulator Charge Controller

Rated Voltage

24V

Model Number

Charge Controller 12V/24V 360w/720w
