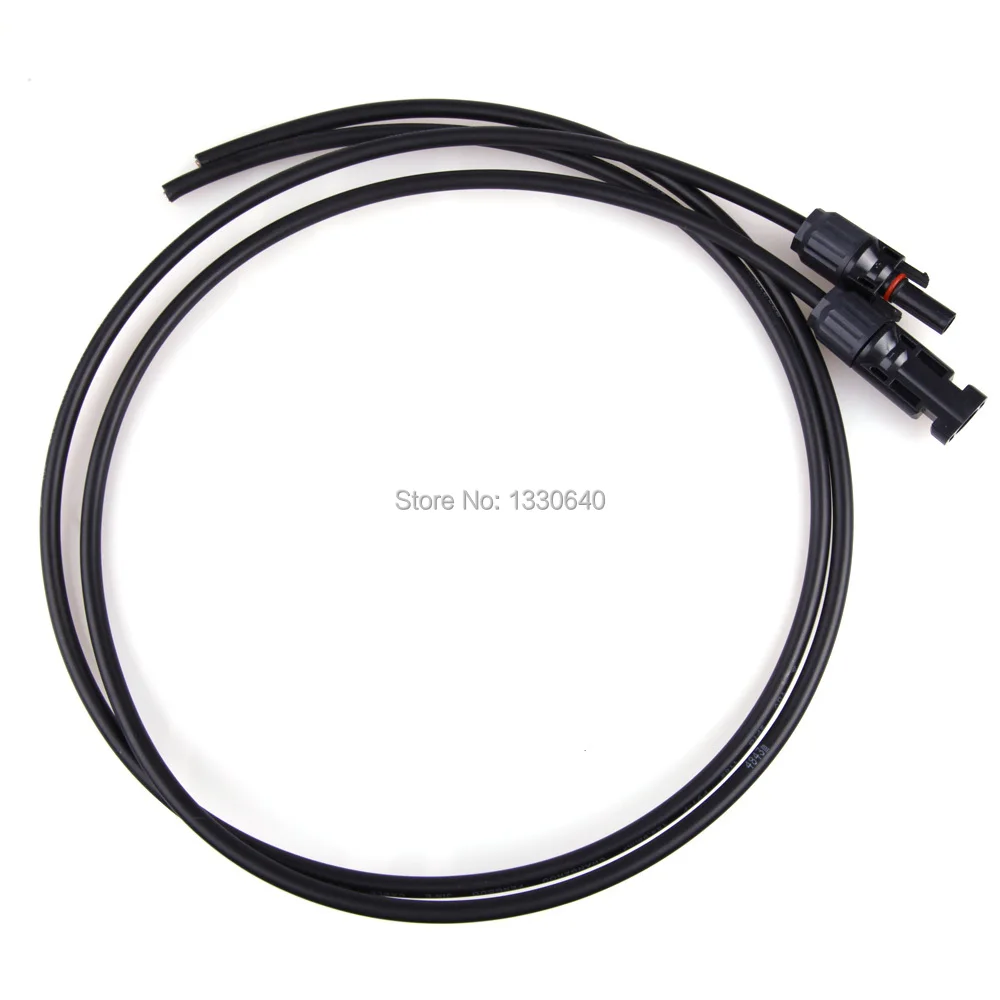

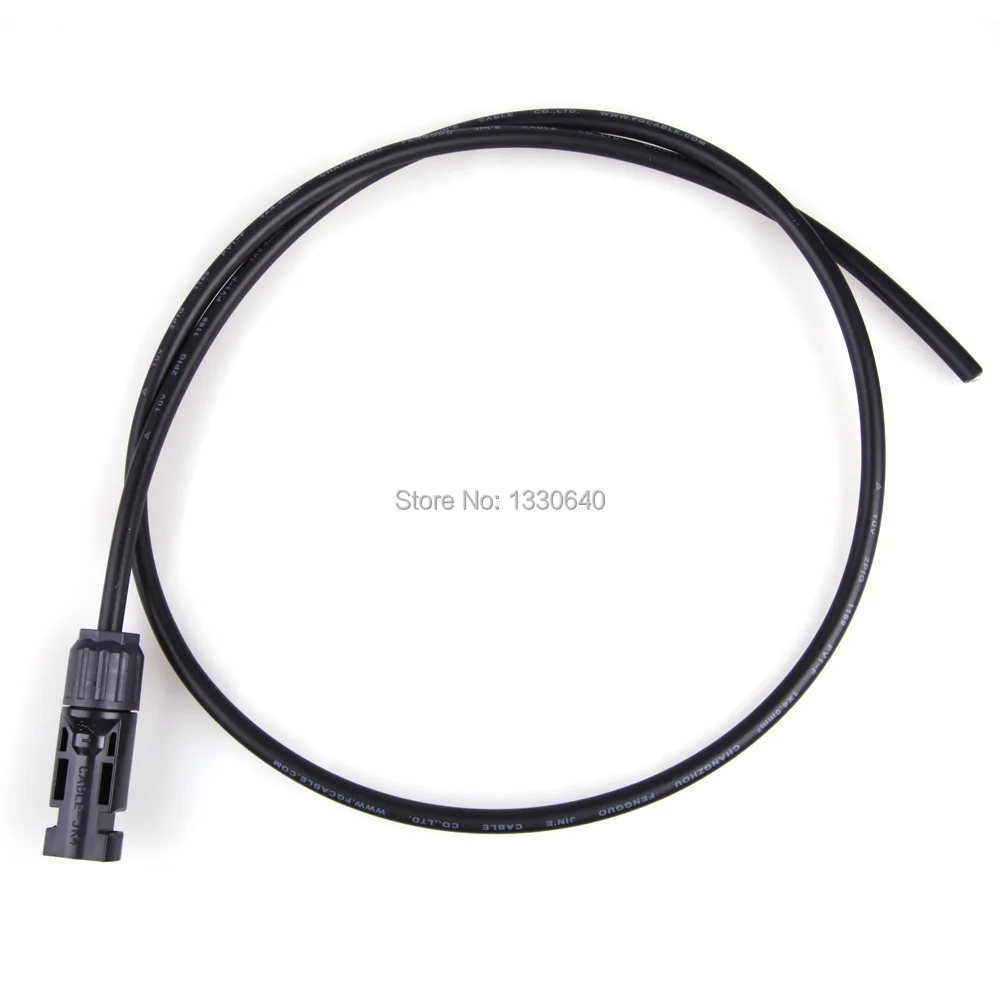

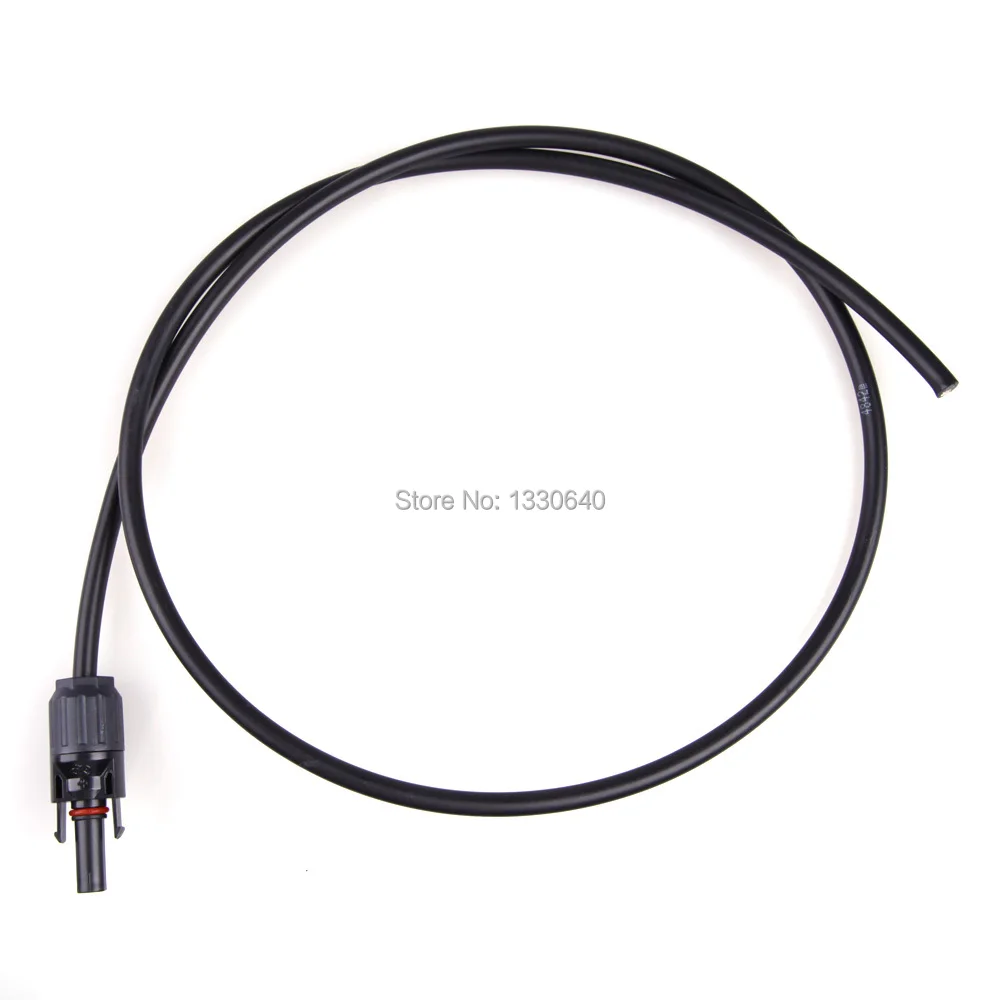

High Quality New 1 Pair 1M Solar Panel Pv Connecting 2.5Mm2 Cable With Mc4 Connectors … #8824-Solar

$ 5.43

High Quality New 1 Pair 1M Solar Panel PV Connecting 2.5MM2 Cable with MC4 Connectors NG4S 100% brand new and high quality For connecting solar panels 1 meter long cable Compatible with MC4 connector Sturdy and durable …

Order now...

SKU: 2046114324. Category: . Tag: .

Product Description

Click here for Best Deals

high quality new 1 pair 1m solar panel pv connecting 2.5mm2 cable with mc4 connectors ng4s

ebay_3_01
High Quality New 1 Pair 1M Solar Panel PV Connecting 2.5MM2 Cable with MC4 Connectors NG4S 71945.01-171945.01-271945.01-371945.01-471945.01-5
ebay_3_03_1
100% brand new and high quality
For connecting solar panels
1 meter long cable
Compatible with MC4 connector
Sturdy and durable

MC4 connector:
Max working current: 25A
Max working voltage: DC1000V
Contacting resistance: ≤0.5Milliohms
Insulation resistance: > 500Meg
Single core cable sectional area: 2.5mm2
Cable outer diameter: Φ5mm~Φ 7mm
Ambient temperature: -40 C~+105 C
Protection grade:IP67
Safety class: II
Pollution class: 2 class
Working temperature: -40~+85C
Insert force: ≤50N
Withdrawal force: ≥50
Insulation material: PC, black
Contacting material: Copper, nickel plating
Flame class:  UL94-VO
Terminal connecting method: pressure welding

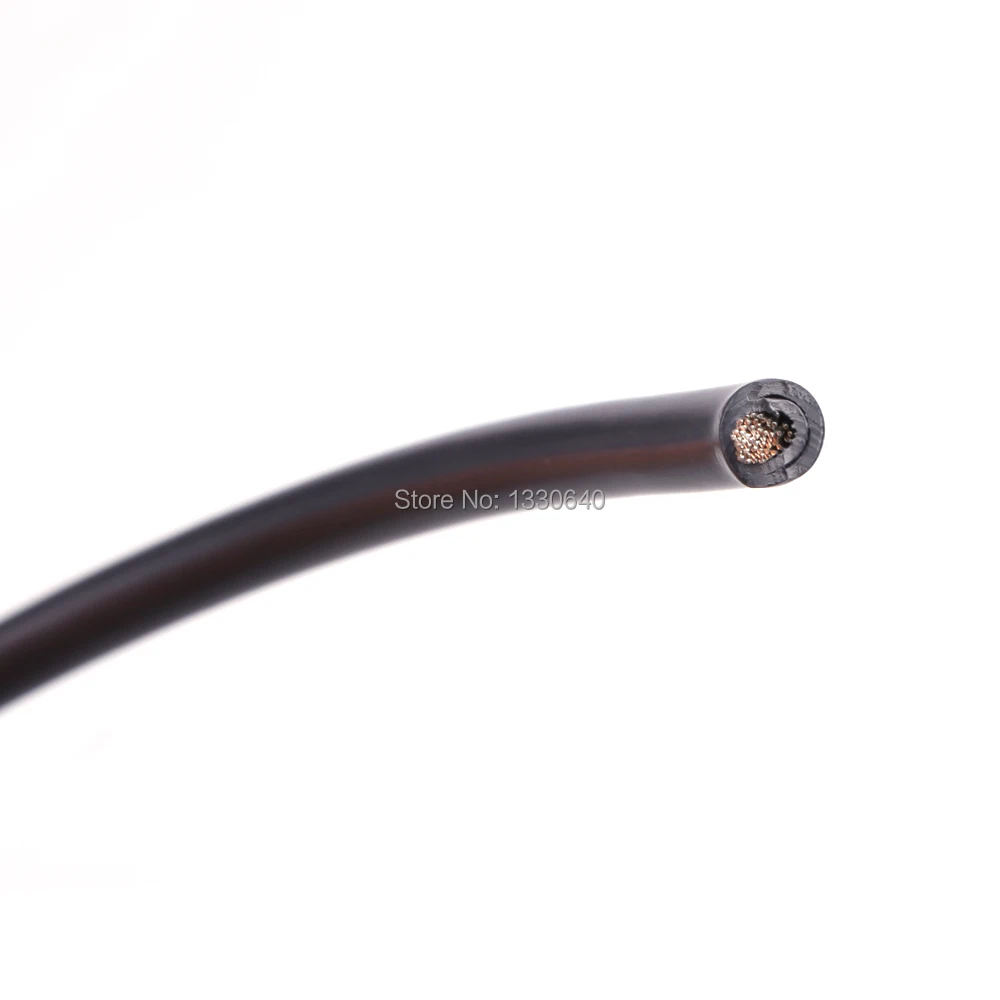

Cable:
Model: PV1-F
Nominal cross section: 2.5mm2
Rated temperature:  -40~+90C
Rated voltage: DC:1.8kv
Rated current: 31A
Weather fastness: UV
Flame resistance: single vertical burning test (IEC60332-1)
Working temperature: -40 – +90C
Working voltage AC/DC(KV):  0.6~1.0/1.8
Core number: NO. 1
Conductor: copper wire structure NO./mm 56/0.30
Insulation minimum thickness: 0.5mm
Sheath minimum thickness: 0.5mm
Finished cable outer diameter: 6.2±0.1mm
Conductor resistance(20C): ≤5.09 Omega/km
Test voltage(kV/min):  6.5/5 No breakdown
ebay_3_03_2
2x MC4 cable connectors
ebay_3_03_2_2

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit time may vary, particularly during the holiday season.
6. If you have not received your orderafter 30 days from payment, please contact us. We will trace your order and get back to you asap. Our goal is customer satisfaction!
7. Delivery Time:
ebay_3_03_4
1. You have 7 days to contact us and 30 days to return it from the date received. If the item is in your possession more than 7 days, it will be considered used and WE WILL NOT ISSUEA REFUND OR REPLACEMENT to you. There are NO EXCEPTIONS!
Shipping cost is bear by both seller and buyer in half.
2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your order ID.
3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement.
4. We will bear all the shipping cost if the product(s) is (are) not as advertised.
ebay_3_03_5
1. 12 months Manufacturer’s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN
EXPIRED WARRANTY.
You agree to all of the above-listed policies upon ordering on aliexpress!
ebay_3_03_6
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can perform up your satisfaction.
It is impossible to address issues if we do not know about them!

See all Bestsellers

Additional Information

Application

Solar Panel

Type

MC4 cable connectors

Gender

other

Max Working Current

25A

Max Working Voltage

DC1000V

Single Core Cable Sectional Area

2.5mm2
