50 Feet 0.12*1.6Mm Tab Wire For Diy Solar Panel/solar … #6117-Ella

$ 4.49

50 feet(15m)tab wire for DIY solar panel/Solar charger size:0.12*1.6mm Tab Wire =Solar Cell side length x The main gate line number x 2(2bus bar)/x3(bus bar) Bus Wire =Tab Wirelength / 5 ! Note: this product is for solar cell’s …

Order now...

SKU: 1393316593. Category: . Tag: .

Product Description

Click here for Best Deals

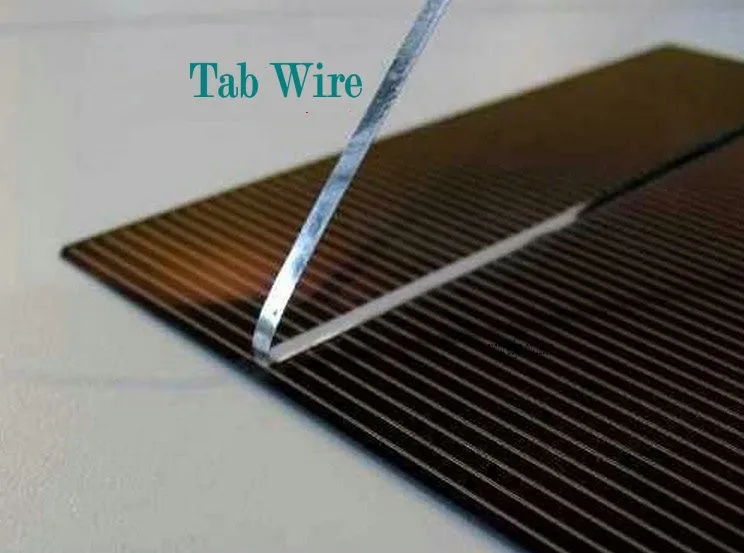

50 feet 0.12*1.6mm tab wire for diy solar panel/solar charger





  50 feet(15m) tab wire for DIY solar panel/Solar charger

size:0.12*1.6mm






Tab Wire = Solar Cell side length x The main gate line number x 2(2bus bar)/x3(bus bar)
Bus Wire = Tab Wire length / 5
! Note: this product is for solar cell’s special welding and other materials can’t replace

Size: 0.16mm thickness 2mm width

Size: 0.12mm thickness 1.6 mm width

Base Material:oxygen-free copper ( TU1 or CAD-110 or UNS C11000)

Coating Content: Sn 62%, Pb 36%, Ag 2%









                                       Main Parameter

Items Standard Values Units
Base Material TUI or CAD-110 or UNS C11000
Base Size Width±0.05, thickness±0.015 mm
Base Resistivity ≤0.0170 Ω•mm2/m
Coat Thickness 0.05±0.015, double-faced mm
Solder Strip Resistence ≤0.0248 Ω•mm2/m
Anti-tensile Strength ≥200 Mpa
Yield Strength <70 HV
Elongation ≥25 %
Width Tolerance ±0.05 mm
Thickness Tolerance ±0.015 mm
Length Tolerance 1.5 mm
Side Camber ≤5 mm/m
Surface Roughness It shows metal brightness, none of discolored, plating,haze spot and rustiness, and none of scratch, tin nubble and burr defect on tape surface.



Besides tabbing wire 2×0.16mm, we also produce other sizes as below:



Dimension Thickness of base copper Coat per side Width tolerance Thickness tolerance
Width x Thickness
1.5 x 0.23 0.18 0.025 ±0.05 ±0.015
1.6 x 0.20 0.15 0.025 ±0.05 ±0.015
1.6 x 0.23 0.18 0.025 ±0.05 ±0.015
1.6 x 0.25 0.05 0.025 ±0.05 ±0.015
1.8 x 0.15 0.1 0.025 ±0.05 ±0.015
1.8 x 0.16 0.11 0.025 ±0.05 ±0.015
1.8 x 0.23 0.18 0.025 ±0.05 ±0.015
2.0 x 0.16 0.11 0.25 ±0.05 ±0.015
Bus bar wire
5.0 x 0.20 0.15 0.025 ±0.05 ±0.015
5.0 x 0.25 0.195 0.0245 ±0.05 ±0.015
5.0 x 0.35 0.305 0.0245 ±0.05 ±0.015
8.0 x 0.35 0.305 0.0245 ±0.05 ±0.015
